1-1/2”Tandem NPT Valve Assembly
1-1/2”Tandem NPT Valve Assembly
Product Features
The PanBlastTM 1-1/2 Tandem NPT Valve Assembly is a pilot operated, spring return diaphragm type valve for use with remote control systems on pressure hold and multiple outlet blast pots. The valve is normally located on the air pusher line to control the blasting air, and can be combined with an abrasive control valve to provide air blow down. The NPT configuration compatible with most U.S. blasting equipment.
Rugged, cast iron construction.
Quick, easy dismantled for cleaning and maintenance.
Service kit available.
38mm (1-1/2”) NPT thread.
Common Applications
Remote control for pressure hold blast pots.
Multiple operator remote control.
Air blow down for component cleanup. -
1-1/4” Tandem NPT Valve Assembly
1-1/4” Tandem NPT Valve Assembly
Product Features
The PanBlastTM 1/1/4” Tandem NPT Valve Assembly is a pilot operated, spring return diaphragm type valve for use with remote control systems on pressure hold and multiple outlet blast pots. The valve is normally located on the air pusher line to control the blasting air, and can be combined with an abrasive control valve to provide air blow down. The NPT configuration is compatible with most U.S. blasting equipment.
Rugged, cast iron construction.
Quick, easy dismantled for cleaning and maintenance.
Service kit available.
32mm (1-1/4”) NPT threads.
Common Applications
Remote control for pressure hold blast pots.
Multiple operator remote control.
Air blow down for component cleanup. -
1.4” x 15m airless paint hose
Product Features
PanBlastTM Airless Spray Pumps are available in several standard sizes to suit different application requirements and coating specifications. All pump sizes share two standard gun styles and multiple spray tips.
– Portable design and rugged frame.
– HP Spray Gun good for use up to 500 bar (7,250 psi).
– Four Finger Spray Gun good for use up to 700 bar (10,150psi).
– Standard flat tips or RAC switch tips.
– Pump ratios of 30:1, 45:1, 63:1, 68:1, and 73:1.
Common Applications
– On site industrial and commercial coating.
– Blast and paint contractor yard work
– Painting room applications.
– In situ coating in shipyards and slipways. -

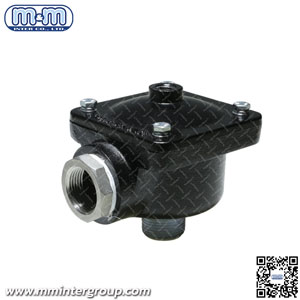

1” NPT diaphragm dump valve
1” NPT Diaphragm Dump Valve
Product Features
The PanBlastTM 1” NPT Diaphragm Dump Valve is an air actuated right angle exhaust valve, designed for blast pot exhaust applications where larger porting and flow capacities are required. The NPT configuration is compatible with most U.S. blasting equipment.
Simple design for easy operation and maintenance.
Powder coated, cast aluminum exterior.
Nitrile rubber diaphragm.
6mm (1/4”) NPT air supply connection.
25mm (1”) NPT exhaust air ports.
Repair parts readily available.
Common Applications
Blast pot exhaust systems requiring quick depressurization.
Economical remote exhaust control for simple blasting operations. -
19mm (3.4”) small bsp.npsm rotating head
Tornado Internal Pipe Blasting Tool Set
Product Features
The PanBlast TM Tornado Internal Pipe Blasting Tool uses a rotating blast head to provide efficient
abrasive blasting of internal pipe surfaces. The standard tool is suitable for blasting pipe sizes from
8” (200mm) ID to 36” (900mm) ID. An optional contractor head enables blasting of pipe up to 60”
(1525mm) ID.
– Rotation driven by blast air supply.
– Twin abrasive nozzle fittings.
– Thermoplastic sleeve.
– Spring loaded, dual sealing system.
– Bleed air venting prolongs tool life.
– Twin shoe speed limiter reduces vibration.
– Standard head fits 3/4” (19mm) fine thread nozzles.
– Optional contractor head fits 2” (50mm) contractor thread nozzles.
– Uses nozzle sizes from 1/4" (6.4mm) to 3/8” (10mm).
– Three (3) carriage sizes available for various pipe diameters.
– Compatible with metallic and non-metallic abrasives.
Common Applications
– Internal pipe cleaning prior to coating applications.
– Pipe descaling and corrosion removal. -
3.8” x 15 m airless paint hose
Product Features
PanBlastTM Airless Spray Pumps are available in several standard sizes to suit different application requirements and coating specifications. All pump sizes share two standard gun styles and multiple spray tips.
– Portable design and rugged frame.
– HP Spray Gun good for use up to 500 bar (7,250 psi).
– Four Finger Spray Gun good for use up to 700 bar (10,150psi).
– Standard flat tips or RAC switch tips.
– Pump ratios of 30:1, 45:1, 63:1, 68:1, and 73:1.
Common Applications
– On site industrial and commercial coating.
– Blast and paint contractor yard work
– Painting room applications.
– In situ coating in shipyards and slipways. -
3/4” Tandem NPT Valve Assembly
3/4” Tandem NPT Valve Assembly
Product Features
The PanBlastTM 3/4″ Tandem NPT Valve Assembly is a pilot operated, spring return diaphragm type valve for use with remote control systems on pressure hold and multiple outlet blast pots. The valve is normally located on the air pusher line to control the blasting air, and can be combined with an abrasive control valve to provide air blow down. The NPT configuration is compatible with most U.S. blasting equipment.
Rugged, cast iron construction.
Quick, easy dismantled for cleaning and maintenance.
Service kit available.
19mm (3/4”) NPT threads.
Common Applications
Remote control for pressure hold blast pots.
Multiple operator remote control.
Air blow down for component cleanup. -
30;1 airless spray
Product Features
PanBlastTM Airless Spray Pumps are available in several standard sizes to suit different application requirements and coating specifications. All pump sizes share two standard gun styles and multiple spray tips.
– Portable design and rugged frame.
– HP Spray Gun good for use up to 500 bar (7,250 psi).
– Four Finger Spray Gun good for use up to 700 bar (10,150psi).
– Standard flat tips or RAC switch tips.
– Pump ratios of 30:1, 45:1, 63:1, 68:1, and 73:1.
Common Applications
– On site industrial and commercial coating.
– Blast and paint contractor yard work
– Painting room applications.
– In situ coating in shipyards and slipways. -
32mm (1-1.4”) npsm large rotating head
Tornado Internal Pipe Blasting Tool Set
Product Features
The PanBlast TM Tornado Internal Pipe Blasting Tool uses a rotating blast head to provide efficient
abrasive blasting of internal pipe surfaces. The standard tool is suitable for blasting pipe sizes from
8” (200mm) ID to 36” (900mm) ID. An optional contractor head enables blasting of pipe up to 60”
(1525mm) ID.
– Rotation driven by blast air supply.
– Twin abrasive nozzle fittings.
– Thermoplastic sleeve.
– Spring loaded, dual sealing system.
– Bleed air venting prolongs tool life.
– Twin shoe speed limiter reduces vibration.
– Standard head fits 3/4” (19mm) fine thread nozzles.
– Optional contractor head fits 2” (50mm) contractor thread nozzles.
– Uses nozzle sizes from 1/4" (6.4mm) to 3/8” (10mm).
– Three (3) carriage sizes available for various pipe diameters.
– Compatible with metallic and non-metallic abrasives.
Common Applications
– Internal pipe cleaning prior to coating applications.
– Pipe descaling and corrosion removal. -
3Blast Pot Lids and Screens
3Blast Pot Lids and Screens
Product Features
Blast pot lids and screens are available as optional items on all PanBlastTM BP Series Blast Pots. Screens are recessed within the top of the blast pot to filter out coarse debris in the abrasive. Lids are placed over the top of the pot shell to prevent foreign objects and moisture from entering. These accessories will assist to prevent blast hose and valve clogging, and reduce the risk of excessive equipment wear.
Simple installation and removal.
Protection of valuable equipment.
Reduction of downtime.
Common Applications.
Abrasive recycling applications.
On site and yard blasting operations where moisture and debris are present. -
45;1 airless spray
Product Features
PanBlastTM Airless Spray Pumps are available in several standard sizes to suit different application requirements and coating specifications. All pump sizes share two standard gun styles and multiple spray tips.
– Portable design and rugged frame.
– HP Spray Gun good for use up to 500 bar (7,250 psi).
– Four Finger Spray Gun good for use up to 700 bar (10,150psi).
– Standard flat tips or RAC switch tips.
– Pump ratios of 30:1, 45:1, 63:1, 68:1, and 73:1.
Common Applications
– On site industrial and commercial coating.
– Blast and paint contractor yard work
– Painting room applications.
– In situ coating in shipyards and slipways. -
50mm (2”) contractor large rotating head
Tornado Internal Pipe Blasting Tool Set
Product Features
The PanBlast TM Tornado Internal Pipe Blasting Tool uses a rotating blast head to provide efficient
abrasive blasting of internal pipe surfaces. The standard tool is suitable for blasting pipe sizes from
8” (200mm) ID to 36” (900mm) ID. An optional contractor head enables blasting of pipe up to 60”
(1525mm) ID.
– Rotation driven by blast air supply.
– Twin abrasive nozzle fittings.
– Thermoplastic sleeve.
– Spring loaded, dual sealing system.
– Bleed air venting prolongs tool life.
– Twin shoe speed limiter reduces vibration.
– Standard head fits 3/4” (19mm) fine thread nozzles.
– Optional contractor head fits 2” (50mm) contractor thread nozzles.
– Uses nozzle sizes from 1/4" (6.4mm) to 3/8” (10mm).
– Three (3) carriage sizes available for various pipe diameters.
– Compatible with metallic and non-metallic abrasives.
Common Applications
– Internal pipe cleaning prior to coating applications.
– Pipe descaling and corrosion removal. -
63;1 airless spray
Product Features
PanBlastTM Airless Spray Pumps are available in several standard sizes to suit different application requirements and coating specifications. All pump sizes share two standard gun styles and multiple spray tips.
– Portable design and rugged frame.
– HP Spray Gun good for use up to 500 bar (7,250 psi).
– Four Finger Spray Gun good for use up to 700 bar (10,150psi).
– Standard flat tips or RAC switch tips.
– Pump ratios of 30:1, 45:1, 63:1, 68:1, and 73:1.
Common Applications
– On site industrial and commercial coating.
– Blast and paint contractor yard work
– Painting room applications.
– In situ coating in shipyards and slipways. -
68;1 airless spray
Product Features
PanBlastTM Airless Spray Pumps are available in several standard sizes to suit different application requirements and coating specifications. All pump sizes share two standard gun styles and multiple spray tips.
– Portable design and rugged frame.
– HP Spray Gun good for use up to 500 bar (7,250 psi).
– Four Finger Spray Gun good for use up to 700 bar (10,150psi).
– Standard flat tips or RAC switch tips.
– Pump ratios of 30:1, 45:1, 63:1, 68:1, and 73:1.
Common Applications
– On site industrial and commercial coating.
– Blast and paint contractor yard work
– Painting room applications.
– In situ coating in shipyards and slipways. -
73;1 airless spray
Product Features
PanBlastTM Airless Spray Pumps are available in several standard sizes to suit different application requirements and coating specifications. All pump sizes share two standard gun styles and multiple spray tips.
– Portable design and rugged frame.
– HP Spray Gun good for use up to 500 bar (7,250 psi).
– Four Finger Spray Gun good for use up to 700 bar (10,150psi).
– Standard flat tips or RAC switch tips.
– Pump ratios of 30:1, 45:1, 63:1, 68:1, and 73:1.
Common Applications
– On site industrial and commercial coating.
– Blast and paint contractor yard work
– Painting room applications.
– In situ coating in shipyards and slipways. -
ABN Blast Nozzles
ATN and ABN Blast Nozzles
Product Features
PanBlastTM Aluminum jacketed Long Series Nozzle are general purpose blast nozzles, suitable for a wide range of abrasive blasting applications and designed for cost effectiveness. All ATN series nozzles feature tungsten carbide inserts for durablility and water resistance, while the ABN series nozzles are supplied with boron inserts, for lighter weight and longer wear life.
Lightweight, durable aluminum jacket.
All nozzles are supplied with a nozzles.
Long venture provides supersonic abrasive velocity.
Available in sizes from #4 (6.4mm, 1/4”) to #8 (12.5mm, 1/2”)
Size 4 features a 25mm (1”) throat entry.
All other sizes feature a 32mm (1-1/4”) throat entry.
50mm (2”) contractor-style coarse thread.
Common Applications
On site industrial and commercial blasting.
Blast and painting contractor yard work.
Blast room applications.
In situ blasting in shipyards and slipways. -
ABN-S Blast Nozzles
ATN – S and ABN – S Blast Nozzles
Product Features
PanBlastTM ATN-S and ABN-S Short Series Nozzles feature straight bore nozzle inserts for a narrower blast pattern. They are ideal for touch up work using smaller capacity blast pots. ATN-S nozzles feature water-resistant, durable tungsten carbide inserts, whilst the ABN-S nozzles are equipped with boron inserts, for lighter weight and longer life.
Lightweight, durable aluminum jacket.
19mm (3/4”) fine thread for small blast hoses.
Compact design.
Common Applications
Suction guns.
Pressure blasting cabinets.
Small capacity blast pots. -

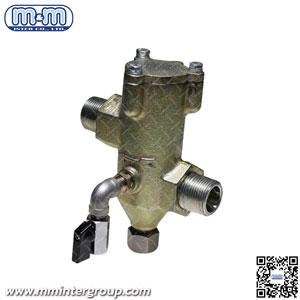

Abraflo NPT abrasive trap II assembly
Abraflo Abrasive Trap II Assembly
Product Features
The PanBlastTM Abraflo Abrasive Trap II Assembly uses cyclonic action and an abrasive screen to trap any abrasive particles in the blast pot exhaust stream. This greatly reduces wear on the exhaust valve and exhaust muffler and reduces the risk of operator injury from airborne abrasive particles. The NPT configuration is compatible with most U.S. blasting equipment.
Lower storage hopper.
Quick release drain port.
Quick release cap for screen changes and maintenance.
Blow down valve on lower chamber for quick purging.
25mm (1”) NPT threaded connections.
Common applications
Protection of blasting personal.
Life extension of blast pot exhaust valves.
