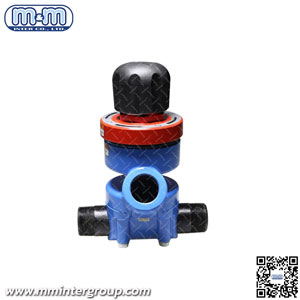

Corsa II 1-1.4” with tungsten sleeve
Corsa II Valve with Tungsten Sleeve
Product Features
THE PanBlastTM Corsa II Valve is an improved, normally closed abrasive metering valve requiring a pilot air signal to permit abrasive flow. The valve may be used on both pressure hold blast pots and pressure release blast pots. The BSP version is intended for use with most non-US equipment and is available in various size and multiple configurations.
Quick valve actuation.
Anti-vibration washer.
Exhaust filter prevents dust from entering air chamber.
Solid Tungsten carbide plunger.
Hardened connection pipe nipple.
Piston travel stop nut.
Improved plunger seat and piston design.
Stainless steel internal parts.
Clean out/drain port.
Graduation markings.
Common Applications
Pressure hold blast pots and multiple outlet blast pots.
Pressure release blast pots, to prevent unwanted filling of blast hose. -
Corsa II NPT 1-1.4” with tungsten sleeve
Corsa II NPT Valve with Tungsten Sleeve
Product Features
The PanBlastTM Corsa II valve is an improved, normally closed abrasive metering valve requiring a pilot air signal to permit abrasive flow. The valve may be used on both pressure hold blast pots and pressure release blast pots. The NPT version is intended for use with most US equipment and is available in various sizes and multiple configurations.
Quick valve actuation.
Anti-vibration washer.
Exhaust filter prevents dust from entering air chamber.
Tungsten carbide plunger and sleeve.
Hardened connecting nipple.
Piston travel stop nut.
Improved plunger seat and piston design.
Stainless steel internal parts.
Clean out/drain port.
Graduation markings.
Common Applications
Pressure hold blast pots and multiple outlet blast pots.
Pressure release blast pots, to prevent unwanted filling of blast hose. -
Corsa II NPT 1-1.4” with urethane sleeve
Corsa II NPT Valve with Urethane Sleeve
Product Features
The PanBlastTM Corsa II valve is an improved, normally closed abrasive metering valve requiring a pilot air signal to permit abrasive flow. The valve may be used on both pressure hold blast pots and pressure release blast pots. The NPT version is intended for use with most US equipment and is available in various sizes and multiple configurations.
Quick valve actuation.
Anti-vibration washer.
Exhaust filter prevents dust from entering air chamber.
Tungsten carbide plunger and sleeve.
Hardened connection nipple.
Piston travel stop nut.
Improved plunger seat and piston design.
Stainless steel internal parts.
Clean out/drain port.
Graduation markings.
Common Applications
Pressure hold blast pots and multiple outlet blast pots.
Pressure release blast pots, to prevent unwanted filling of blast hose. -
Corsa NPT 1-1.2” with tungsten sleeve
Corsa NPT Valve with Tungsten Sleeve
Product Features
The original PanBlastTM Corsa valve is a normally closed abrasive metering valve requiring a pilot air signal to permit abrasive flow. The valve may be used on both pressure hold blast pots and pressure release blast pots. The NPT version is intended for connection with most US equipment and is available in various sizes and Multiple configurations.
Quick valve actuation.
Precise sealing.
Exhaust filter prevents dust from entering air chamber.
Easy assembly and disassembly.
Hardened connecting nipple.
Improved carbide plunger sleeve provides Longerfeed orifice life.
Improved Plungerseat and piston design.
Common Applications
Pressure hold blast pots and multiple outlet blast pots.
Pressure release blast pots, to prevent unwanted filling of blast hose. -
Corsa NPT 1-1.4” with urethane sleeve
Corsa NPT Valve with Urethane Sleeve
Product Features
The original PanBlastTM Corsa Valve is a normally closed abrasive metering valve requiring a pilot air signal to permit abrasive flow. The valve may be used on both pressure hold blast pots and pressure release blast pots. The NPT version is intended for connection with most US equipment and is abrasive in various sizes and multiple configurations.
Quick valve actuation.
Precise sealing.
Exhaust filter prevents dust from entering air chamber.
Easy assembly and disassembly.
Hardened connecting nipple.
Improved plunger and urethane sleeve for greater reliability.
Improved plunger seat and piston.
Common Applications
Pressure hold blast pots and multiple outlet blast pots.
Pressure release blast pots, to prevent unwanted filling of blast hose. -
Enviro Valve Assembly
Enviro Valve Assembly
Product Features
The PanBlastTM Enviro Valve Assembly is a cost effective, manually operated, ball type abrasive control valve, specifically designed for use with Garnet abrasive. The BSP version is intended for use with most non-US blasting equipment.
316 stainless steel construction.
Urethane insert for consistent, accurate flow rate.
Tie rod design for easy dismantling and reassembly.
32mm (1 1/4”) fittings.
Common Applications
Blast room and yard operations requiring Garnet media.
On site blasting operations requiring Garnet media. -

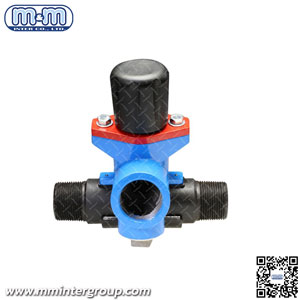

Fina II Valve 1-1.4” M X 1-1.4 M
Fina Valve Assembly
Product Features
PanBlastTM Fina Abrasive Metering Valve reduce costs associated with excess abrasive usage and is dismantled quickly for easy clearing or maintenance. The BSP version is intended for connection with most non-US equipment and is available in multiple sizes and configurations.
Low profile.
Hardened steel plunger.
Urethane sleeve
Urethane plunger seal for smooth operation.
Compatible with all abrasives.
Easily disassembled for servicing and maintenance.
Various BSP size and combinations available.
Complete range of replacement parts available.
Common Applications
Touch-up blasting operations.
Blasting applications with multiple media types.
Blast room, yard, or site operations.
Fina II Valve 1-1.4” M X 1-1.4 M -
Fina II valve 1-1.4” m x 1-1.4” m
Fina II Valve Assembly
Product Features
The PanBlastTM Fani II BSP Abrasive Metering Valve combines the durability and precise control of the original Fina valve with new features, for increased pipe nipple life and simpler clearing and maintenance. The BSP version is intended for connection with most non-US equipment and is available in multiple sizes and configurations.
Hardened steel plunger and urethane sleeve.
Urethane plunger sleeve for smooth operation.
Compatible with all abrasive types.
Redesigned pipe nipple mounting reduces internal wear.
Easily dismantled for servicing and maintenance.
Various BSP size and combinations available.
Internal wear parts interchangeable with original Fina valves.
Common Applications
Touch-up blasting operations.
Blasting applications with multiple media types.
Blast room, yard, or on site operations. -
Fina II valve NPT 1-1.4” m x 1-1.2” m
Fina II Valve NPT
Product Features
The PanBlastTM Fina II NPT Abrasive Metering Valve combines the durability and precise control of the original Fina Valve with new features, for increased nipple life and simpler clearing and maintenance. The NPT Version is intended for connection with most US equipment and is available in multiple sizes and configurations.
Hardened steel plunger and urethane sleeve.
Urethane plunger sleeve for smooth operation.
Compatible with all abrasives.
Redesigned pipe mounting reduces internal wear.
Easily dismantled for servicing and maintenance.
Various NPT sizes and combinations available.
Internal wear parts interchangeable with original Fina valves.
Common Applications
Touch-up blasting operations.
Blasting applications with multiple media types.
Blast room, yard, or on site operations. -
Fina II valve NPT 1-1.4” m x 1-1.4” m
Fina II Valve NPT
Product Features
The PanBlastTM Fina II NPT Abrasive Metering Valve combines the durability and precise control of the original Fina Valve with new features, for increased nipple life and simpler clearing and maintenance. The NPT Version is intended for connection with most US equipment and is available in multiple sizes and configurations.
Hardened steel plunger and urethane sleeve.
Urethane plunger sleeve for smooth operation.
Compatible with all abrasives.
Redesigned pipe mounting reduces internal wear.
Easily dismantled for servicing and maintenance.
Various NPT sizes and combinations available.
Internal wear parts interchangeable with original Fina valves.
Common Applications
Touch-up blasting operations.
Blasting applications with multiple media types.
Blast room, yard, or on site operations. -
Fina II valve NPT 1” f x 1-1.2” m
Fina II Valve NPT
Product Features
The PanBlastTM Fina II NPT Abrasive Metering Valve combines the durability and precise control of the original Fina Valve with new features, for increased nipple life and simpler clearing and maintenance. The NPT Version is intended for connection with most US equipment and is available in multiple sizes and configurations.
Hardened steel plunger and urethane sleeve.
Urethane plunger sleeve for smooth operation.
Compatible with all abrasives.
Redesigned pipe mounting reduces internal wear.
Easily dismantled for servicing and maintenance.
Various NPT sizes and combinations available.
Internal wear parts interchangeable with original Fina valves.
Common Applications
Touch-up blasting operations.
Blasting applications with multiple media types.
Blast room, yard, or on site operations. -
Fina valve 1”f x 1-1.2” m assembly
Fina Valve Assembly
Product Features
PanBlastTM Fina Abrasive Metering Valve reduce costs associated with excess abrasive usage and is dismantled quickly for easy clearing or maintenance. The BSP version is intended for connection with most non-US equipment and is available in multiple sizes and configurations.
Low profile.
Hardened steel plunger.
Urethane sleeve
Urethane plunger seal for smooth operation.
Compatible with all abrasives.
Easily disassembled for servicing and maintenance.
Various BSP size and combinations available.
Complete range of replacement parts available.
Common Applications
Touch-up blasting operations.
Blasting applications with multiple media types.
Blast room, yard, or site operations.
Fina II Valve 1-1.4” M X 1-1.4 M
