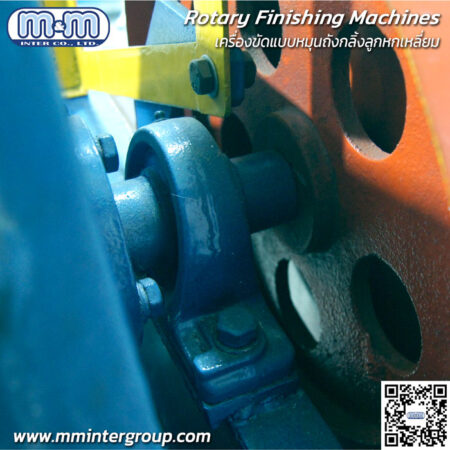

Rotary Finishing Machines – เครื่องขัดแบบหมุนถังกลิ้งลูกหกเหลี่ยม
เครื่องขัดแบบหมุน
เครื่องขัดแบบหมุน ใช้สำหรับขัดวัสดุขนาดเล็ก ขนาดมาตรฐาน และวัสดุทุกชนิดที่ทำจากโลหะที่มีส่วนประกอบของเหล็ก โลหะและวัสดุที่ไม่ใช่โลหะทั้งที่มีเหล็กและไม่มีเหล็กเป็นส่วนประกอบ ช่วยปรับปรุงคุณสมบัติของพื้นผิวของวัสดุได้อย่างมีประสิทธิภาพ และยังนำไปปรับใช้ในการขัดชิ้นส่วนจำนวนมากได้ ตัวเครื่องมีโครงสร้างที่ไม่ซับซ้อนแต่แข็งแรงปลอดภัยต่อการใช้งาน ช่วยประหยัดเวลา ดังนั้นจึงสามารถใช้งานหลาย ๆ เครื่องได้ในเวลาเดียวกัน สามารถปรับแต่งด้วยการลดอุปกรณ์เพื่อการเดินเครื่องที่ราบเรียบ ควบคุมการเปลี่ยนความเร็วด้วยระบบอินเวอร์เตอร์ทำให้มีรูปแบบการทำงานที่มากขึ้น ใช้ถังที่กรุด้วยโพลียูรีเทน ทนการสึกกร่อนสูง และเทแบบร้อนได้ ช่วยยืดอายุการใช้งาน ปุ่มปรับถังแบบโยกช่วยให้ปรับตำแหน่งถังได้ง่ายสำหรับการยกขึ้นและยกลง
Rotary Finishing Machines
Rotary Finishing Machines are used for polishing small sizes components, standardized parts and components, and all kinds of components which are made of ferrous metal,nonferrous metal and nonmetal. It can improve the surface quality of the components efficiently, and can be widely applied to polish a large quantity of spare parts.
This type of machines has a simple but strong structure, safe for use. It is also equipped with a timer, so that one can operate several machines at one time. Equipped with reduction device for smooth running. Inverter variable speed control for more processing options. Hot poured, high wear-resistant polyurethane lined barrel has longer working life.
The barrel jog button makes the barrel to be positioned properly for easy loading/unloading.
Types and Models Available:
Single Barrel Rotary Finishing Machine | ||||||
Model | Capacity
(L) |
PU thickness (mm) | Barrel speed (r/min) | Power (kw) | Dimension
L x W x H (mm) |
Weight
(kg) |
MMS50 | 50 | 10 | 60 | 1.0 | 730 x 720 x 1200 | 150 |
MMS100 | 100 | 10 | 40 | 1.1 | 1020 x 900 x 1300 | 200 |
MMS200 | 200 | 10 | 30 | 2.2 | 1090 x 1000 x 1420 | 500 |
MMS300 | 300 | 10 | 30 | 2.2 | 1450 x 1000 x 1420 | 560 |
MMS500 | 500 | 10 | 25 | 5.5 | 1660 x 1300 x 1520 | 1000 |
Double barrel rotary finishing Machine | ||||||
Model | Capacity
(L) |
Barrel speed (r/min) | Power
(kw) |
Dimension
L x W x H (mm) |
Weight
(kg) |
|
MMD2 x 140 | 2 x 140 | 40 | 3 | 2570 x 850 x 1267 | 100 | |
MMD2 x 300 | 2 x 300 | 30 | 4 | 3000 x 1300 x 1450 | 560 | |
MMD2 x 500 | 2 x 500 | 25 | 7.5 | 3870 x 1150 x 1420 | 1000 |
Rotary Finishing Machines – เครื่องขัดแบบหมุนถังกลิ้งลูกหกเหลี่ยม
