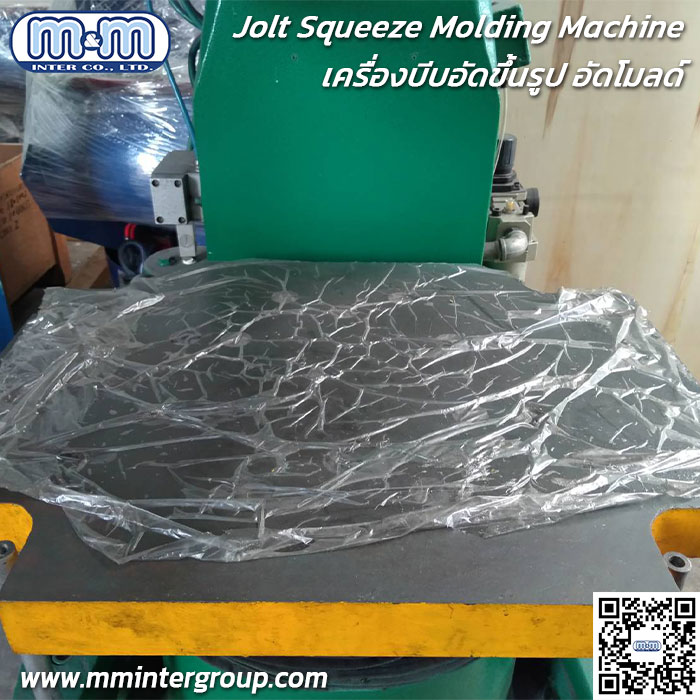

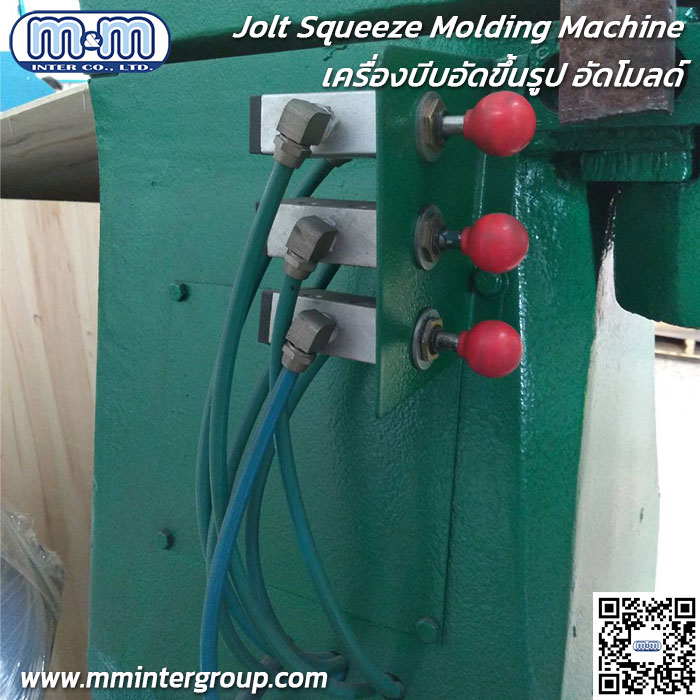

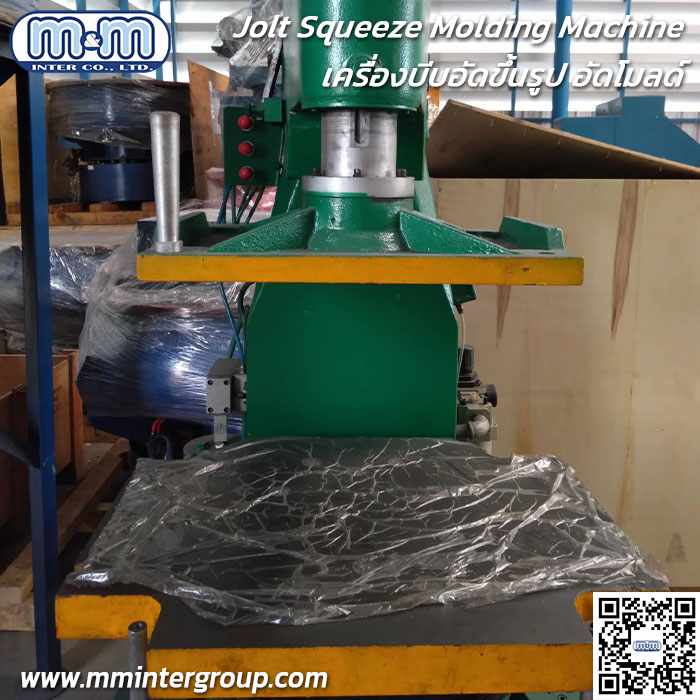

JOLT SQUEEZE MOLDING MACHINE
Specification
Item | Unit | Z143 | Z145WB | Z145W | Z146W |
The max of the sand box | mm | 400*400
*100 |
500*400
*180 |
500*450
*200 |
600*500
*200 |
Working table size | mm | 560*420 | 560*465 | 610*515 | 700*555 |
Working air pressure | Mpa | 0.55 | 0.6 | 0.6 | 0.6 |
Compressive stress | KN | 40 | 42 | 63 | 70 |
Jolting load | KN | 2.5 | 2.6 | 3 | 3 |
Compress process | mm | 90 | 120 | 148 | 150 |
Molding process | mm | 150 | 150 | 200 | 200 |
Distance pressure-head to
the worktable |
mm | 200-370 | 170-190 | 200-450 | 200-420 |
Productivity | Mould/h | 40-60 | 40-60 | 40-60 | 40-60 |
Item | Unit | Z146WB | Z148CW | Z148E | Z1410 |
The max of the sand box | mm | 600*500
*250 |
800*630
*320 |
800*700
*320 |
1000*800
*350 |
Working table size | mm | 700*555 | 900*730 | 1000*800 | 1400*1030 |
Working air pressure | Mpa | 0.6 | 0.6 | 0.6 | 0.6 |
Compressive stress | KN | 83 | 120 | 180 | 32000kg |
Jolting load | KN | 4.6 | 5.5 | / | 1600kg |
Compress process | mm | 150 | 195 | 200 | 200 |
Molding process | mm | 200 | 320 | 320 | 350 |
Distance pressure-head to
the worktable |
mm | 280-500 | 350-680 | 400-695 | 700-1000 |
Productivity | Mould/h | 40-60 | 40-60 | 40-60 | 40-60 |
